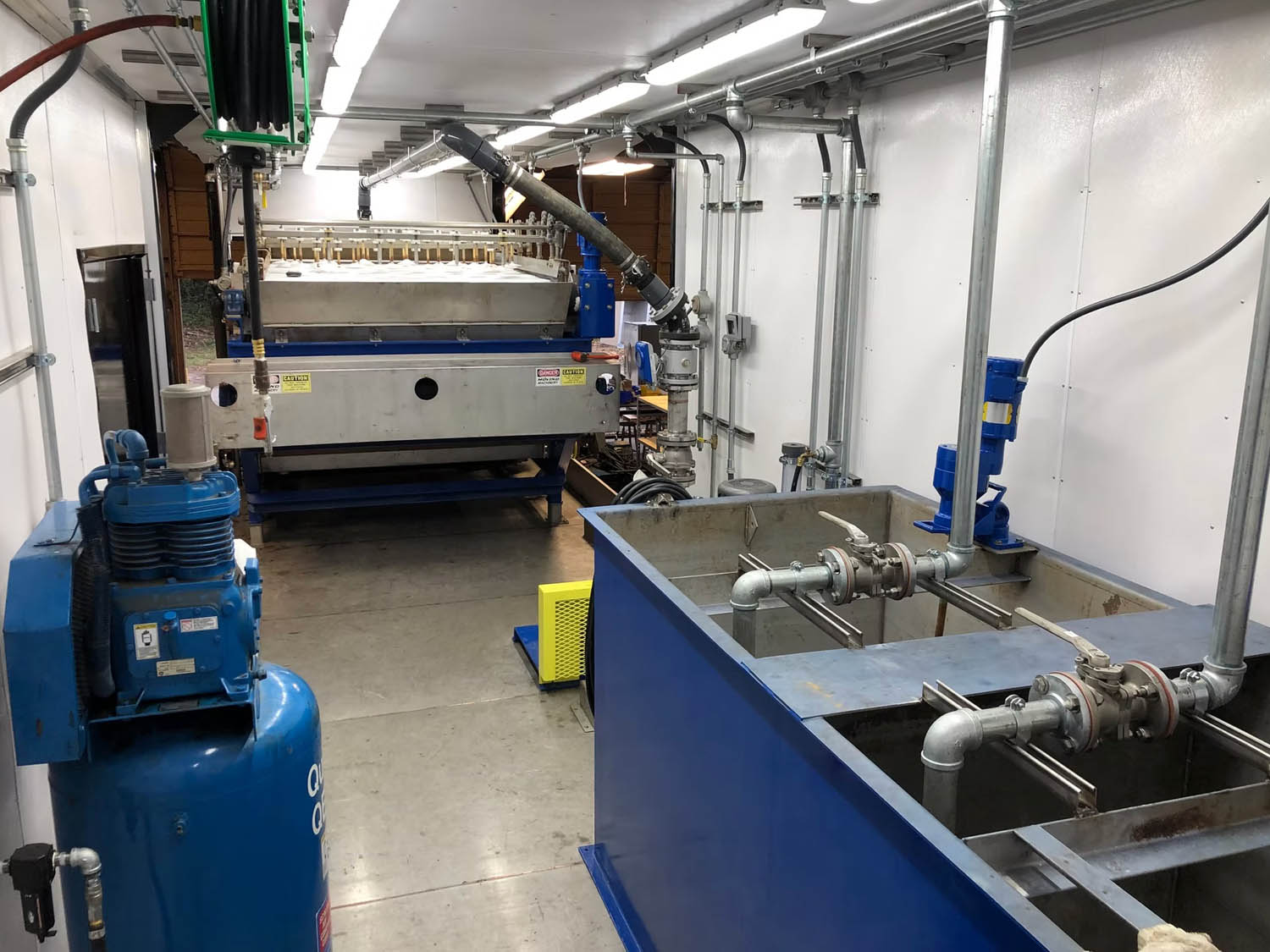

2.0 meter Komline-Sanderson belt filter press



Technical Specifications:

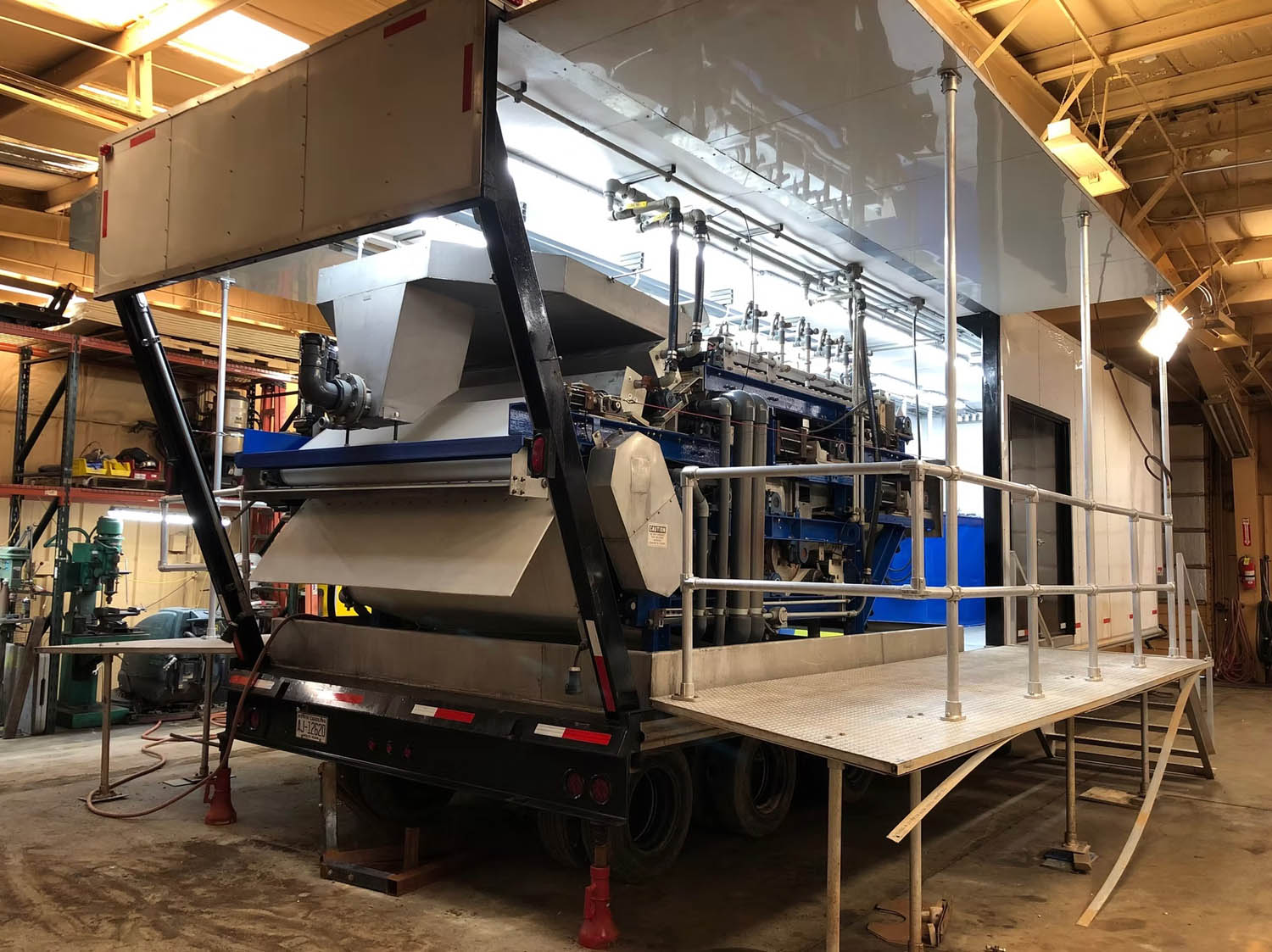

• Trailer

  • Triple Axle enclosed​

  • GVW: 58,000 lbs w/o tractor. Normally weight load

  • Width: 10'-10". Requires over width permits

• Two (2) meter belt press

• Triple belt configurations with gravity belt

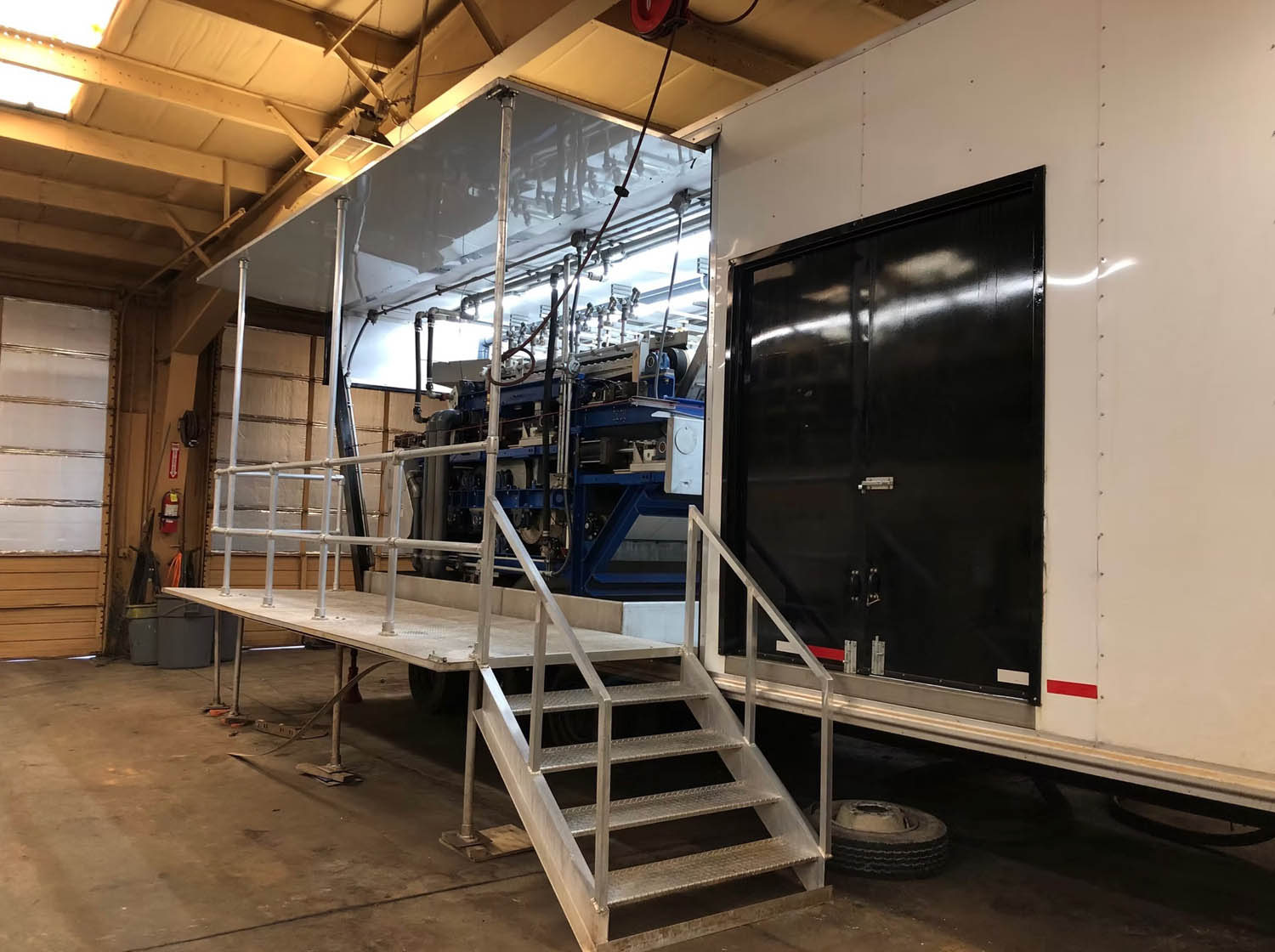

• Fold down catwalks and fold up catwalk roof with handrails

• On board air compressor

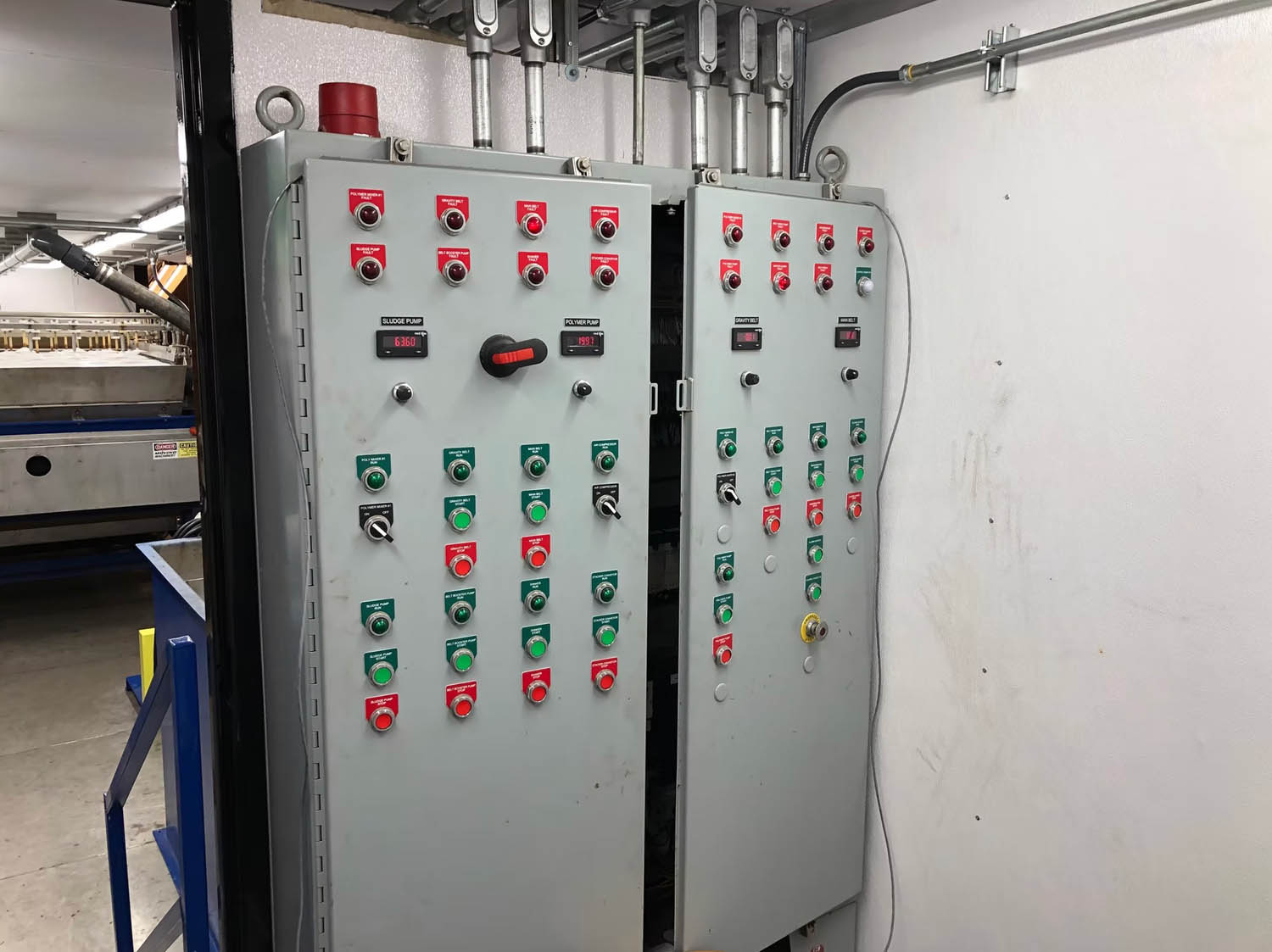

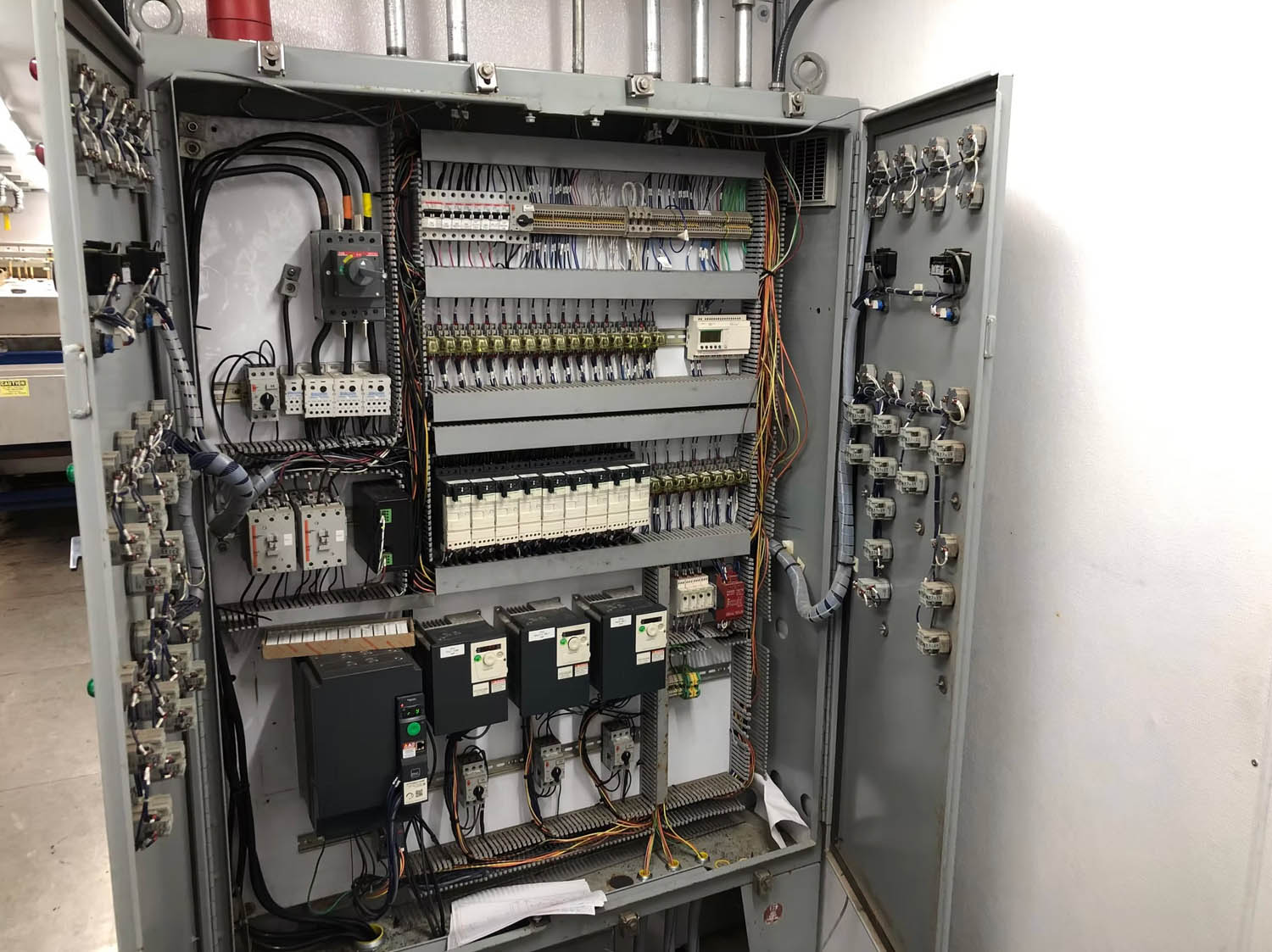

• Central control panel

  • 480 VAC / 60 Hz @ 75/150 amps depending on auxiliary options.

• Completely integrated with:

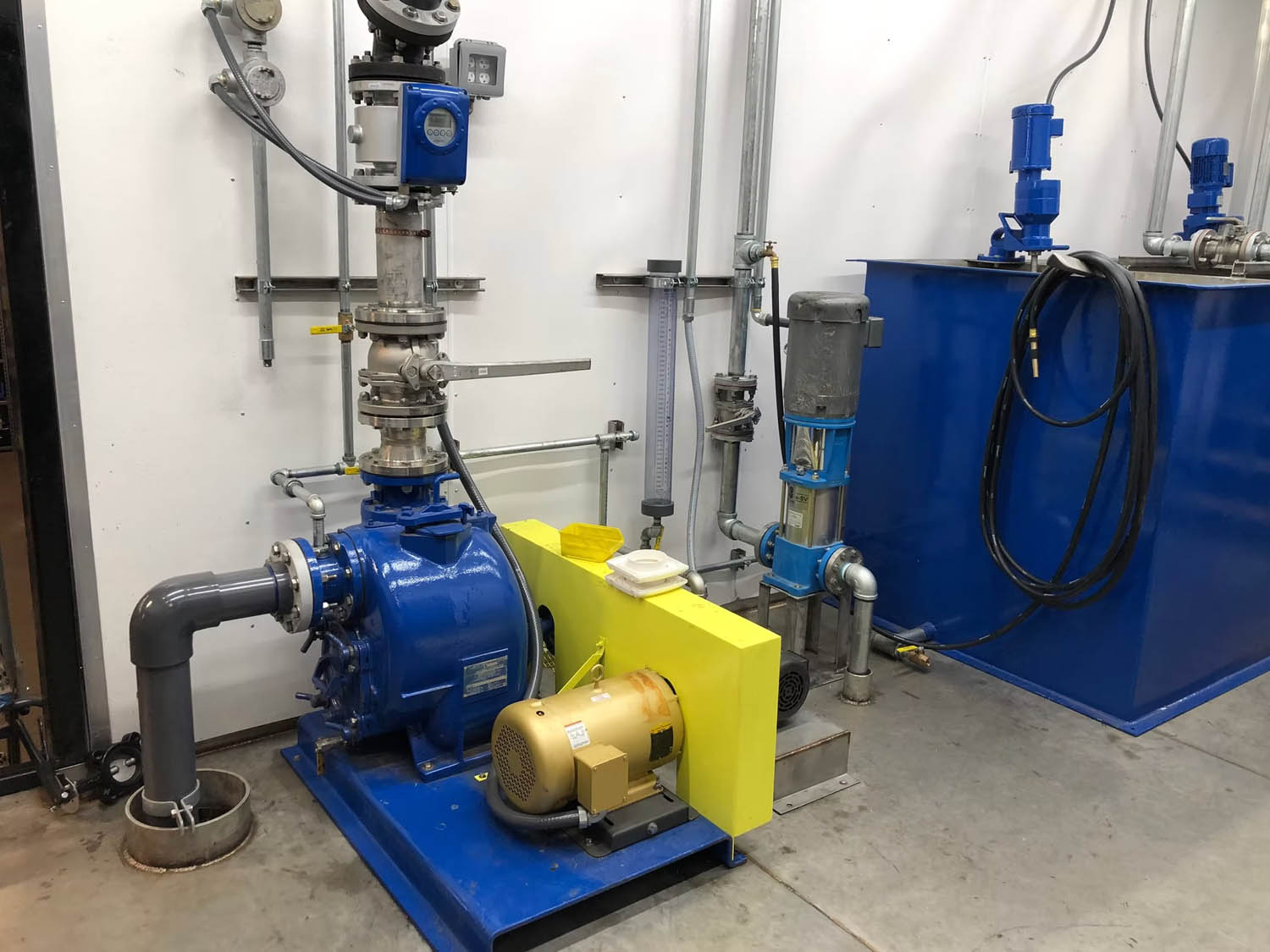

  • 4" Gorman-Rupp feed pump w/ set point flow control

  • Belt wash booster pump

  • 80 gpm requirement @ 40 PSI

  • Polymer feed system

    • Single variable speed progressive cavity pump w/ calibration columns​

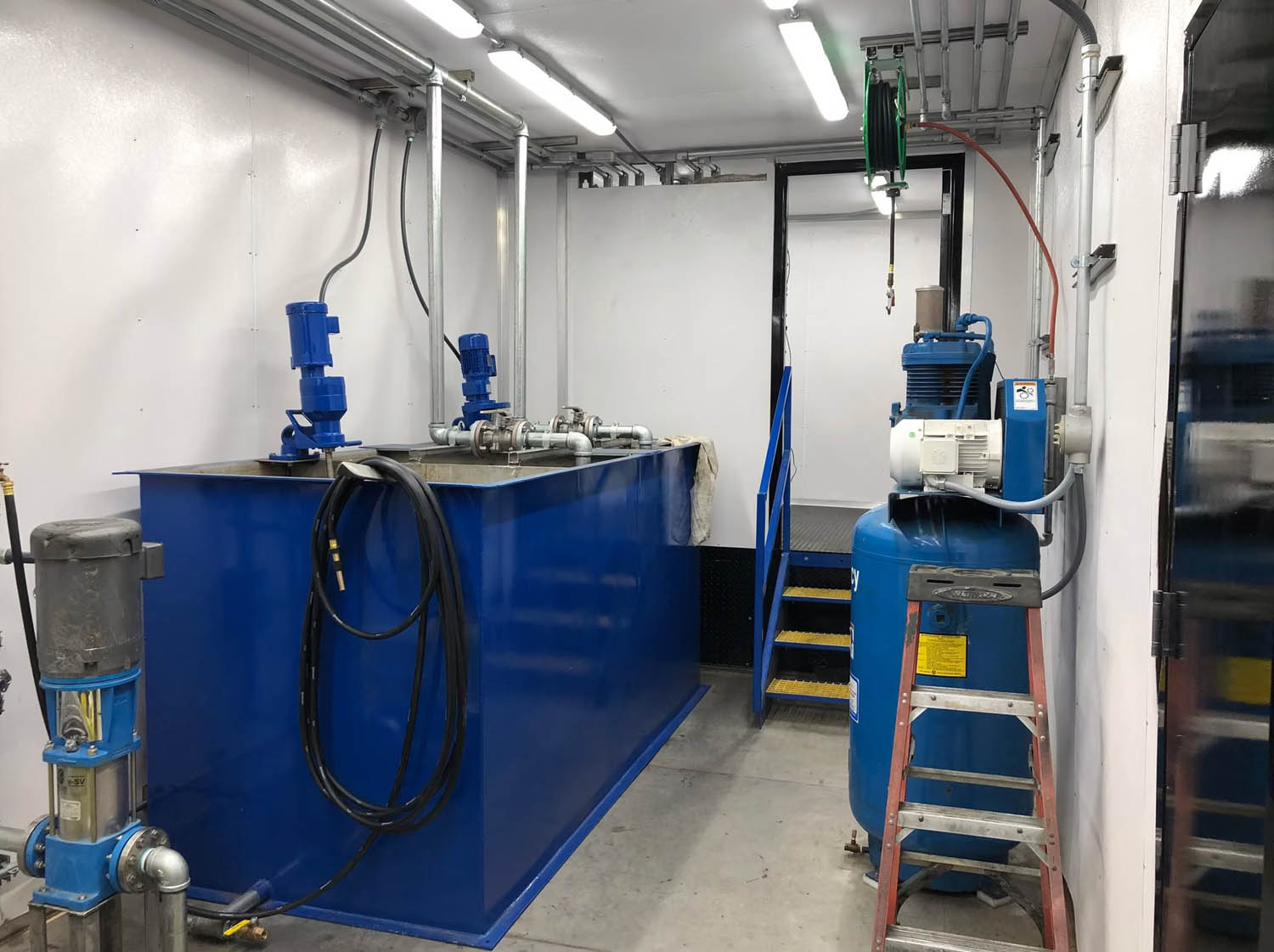

  • Duplex polymer make down tanks with mixers

  • Primary side screw sludge conveyor

• Inlets & Outlets

  • Sludge Inlet:  4" female camlock​, flange or NPT

  • Filtrate Outlet: 6" male camlock, flange or NPT

  • Water Inlet:  2" female camlock, flange or NPT

• LED lighting

• Optional secondary belt stacker conveyor available

• Optional three sided sludge box available
